Hysteresis-type Cable Reel
Product Overview
Hysteresis-type cable reel digestion and absorption of the German-based company's AGE technology, specifically designed for the port lifting equipment, this product with the usual weight-type (heavy hammer type), torque motor type, friction type cable reel, compared , with approximate constant torque drives the motor one-way operation to locked rotor and torque adjustable, and a self-braking function, no need to install brakes, safe and reliable, is currently the best cable winding device.
This product can be widely used in the port gantry cranes, container crane, Crane, gantry crane, ship loader, ship unloader, mobile crane and other lifting equipment and other similar conditions of heavy machinery and equipment.
Conditions of Use
A, altitude not more than 2000M.
B, ambient temperature of 30 degrees ~ +45 degrees.
C, allowing rain, rain splash and dust under the conditions in the workplace.
D, the maximum vibration conditions of installation position: 5 ~ 13Hz, the displacement of 1.5mm, 13 ~ 150Hz, the vibration speed of 10m / s.
E, collector box protection grade IP54
Main technical parameters
A, rated voltage: 380V, 6KV, 10KV.
B, rated current: I-type slip-ring 400A, Ⅲ-type slip-ring 10A, Ⅳ-type slip-ring 100A, Ⅴ-type slip ring 800A.
C, the output torque adjustment range: 130 ~ 300NM (a single drive of dollars)
D, weight: the weight of reel and collectors see Table 6, Table 7; a single drive ASSY (including the drive motors, hysteresis coupling, planetary gear box, small gear umbrella) 71Kg; the main gear box assembly 180Kg (assembly hollow axis for the thick-axis) users can use the reel diameter, set of electrical specifications, quantity and gear box drives a cable reel weight of the total weight.

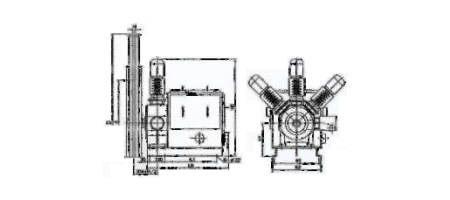

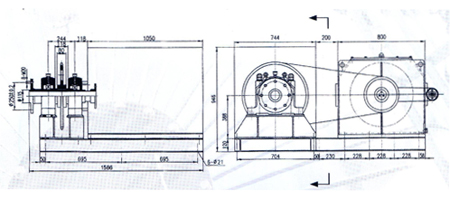

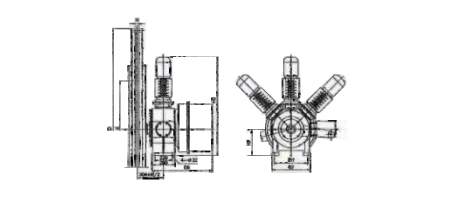

Dimension and the structure
| Cable Reels | L0 | H0 | H1 | B1 | B2 | L1 | Mounting brackets | Set Electric Model | |
| Power Box | 380KV | 775 | 1205 | 325 | 420 | 480 | — | No | J1D |
| 380KV | 1062 | 1346 | 461 | 636 | 682 | 730 | Yes | J3D | |
| 10KV | 1343 | 1346 | 466 | 698 | 745 | 1000 | Yes | J2D | |
| Controlling | 14 Ring | 775 | 1205 | 325 | 420 | 480 | — | No | J1K |
| 24 Ring | 895 | — | No | J2K | |||||
| 37 Ring | 1110 | 1346 | 466 | 730 | Yes | J3K | |||
| 48 Ring | 1250 | 1000 | Yes | J4K | |||||
Reel drive, the number of n values
 |
1800 | 2200 | 00 | 3000 | 3400 | 3800 | 4200 | |||
| GFR(14×15) | h | ≤4 | ||||||||
| n | 1 | |||||||||
| GFR(24×15) | h | ≤4 | ||||||||
| n | 1 | 2 | ||||||||
| YCW(3×70+1×25) VGF(3×35+1×16) |
h | ≥2-4 | ≥2-4 | ≥3-4 | ||||||
| n | 2 3 | |||||||||
| YCW(3×120+1×35) | h | ≥3-4 | ≥2.5-4 | ≥2.5-3 | ≥3-4 | ≥2.5-3 | ≥3-4 | ≥3-4 | ||
| n | 2 | 3 | 2 | 3 | 4 | |||||
| GBF(3×35+1×16) | h | ≥2.5-4 | ≥3-4 | |||||||
| n | 2 | 3 | ||||||||
| Note: ① D-reel diameter; h-reel mounting height; ② table values for user reference, may be beyond the scope of the coordination of the above-mentioned order, when the number of the drive when you use more than 5-type cable reel factory 2C hysteresis | ||||||||||
Reel size and capacity of cable length
 |
H | ID d | OD D | ||||||
| 1800 | 2200 | 2600 | 3000 | 3400 | 3800 | 4200 | |||
| CEER(14×15)Φ25.9(With cable) | 32 | 900 | 68/184 | 117/224 | 170/264 | 239/304 | — | ||
| CEER(24×15)Φ32.6(With cable) | 40 | 51/190 | 90/230 | 137/270 | 190/310 | 249/350 | — | ||
| YCW(3×50+1×16)Φ45.8 | 56 | 1200 | — | 80/300 | 119/340 | 163/380 | 213/420 | 262/460 | |
| YCW(3×70+1×25)Φ51.5 | 64 | — | 71/300 | 105/340 | 144/380 | 188/420 | 237/460 | ||
| YCW(3×35+1×16)Φ52 | |||||||||
| YCW(3×120+1×35)Φ51.5 | 74 | — | 59/310 | 92/350 | 122/390 | 155/430 | 203/470 | ||
| GBR(3×35+1×16)40×60 | — | 88/310 | 138/350 | 183/390 | 232/430 | 304/470 | |||
Cable reel control box and cable reel played the role of protection
JDK-1 JDK-2 JDK-3 JDK-4 JDK-5 Drive Quantity 1 2 3 4 5 A 300 350 400 B 400 450 500 C 300 300 350
Rack and cable

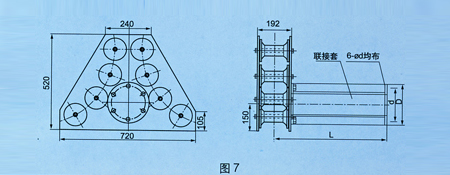

The role of the main frame and cable is to use the cable reel, the cable can ditch along the direction of cable terminals cable into the trench so as to avoid cable irregularly stacked, causing one car rolling bad. There are universal and cable racks and cable and cable frame and swing-type frame two kinds. GM and cable rack structure is simple, users easy installation, the cable reel retractable cable, only play the guiding role of the external dimensions shown in Figure, specifications selected according to the meter.
| L | ≤500 | ＞500-800 | ＞800-1000 | ＞1000-1200 |
| D | 220 | 250 | 275 | 300 |
| d | 180 | 210 | 230 | 250 |
| Φ | 13 | 17 | ||
| kg | -145 | 150 | -160 | 170 |
Swing and cable rack

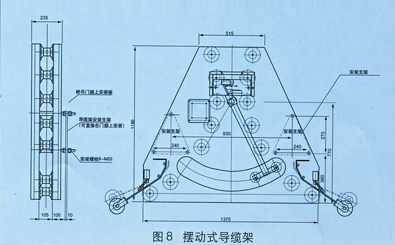

Swing-type frame in addition to cable and cable reel retractable cable guide, the judge can limit switches in both directions from the master control room to provide carts to run signal cable guide planes through the two limit switches to realize cable over-tension protection, its protection and installation dimensions as shown.
T2C-type cable reel
When the cable and reel torque generated by more than 5 T1C cable reel when the drive torque generated. Using T2C cable reel.
