变频式电缆卷筒网站首页->产品介绍->变频动式电缆卷筒

常用变频电缆卷筒主要技术参数表
型号规格 额定旋转柜(NM) 容量(A) 电机功率(KW) 额定电压(V) 滑环数量(只)
DKT2P-[J1D-4]-5/0.5 5 30 0.5 48 8
DKT1P-[J3D-4]-300/0.5 300 400 0.5 380 4
DKT1P-[J3D-4]-1000/0.75 1000 800 0.75 380 4
DKT1P-[J3D-4]-1500/1.1 1500 800 1.1 380 4
DKT1P-[J3D-4]-2000/1.5 2000 800 1.5 380 4
DKT1P-[J3D-4]-3000/2.2 3000 800 2.2 380 4
DKT1P-[J3D-4]-5000/3.7 5000 800 3.7 380 4
DKT1P-[J3D-4]-7000/5.5 7000 800 5.5 380 4
DKT1P-[J3D-4]-10000/7.5 10000 800 7.5 380 4
DKT1P-[J1K-4]-1000/0.75 1000 30 0.75 380 14
DKT1P-[J2K-4]-1000/0.75 1000 30 0.75 380 24
DKT1P-[J3K-4]-1000/0.75 1000 30 0.75 380 37
DKT1P-[J4K-4]-1500/1.1 1500 30 1.1 380 48
DKT1P-[J2D-4]-1000/0.75 1000 200 0.75 10000 4
DKT1P-[J2D-4]-1500/1.1 1500 200 1.1 10000 4
DKT1P-[J2D-4]-2000/1.5 2000 200 1.5 10000 4
DKT1P-[J2D-4]-3000/2.2 3000 200 2.2 10000 4

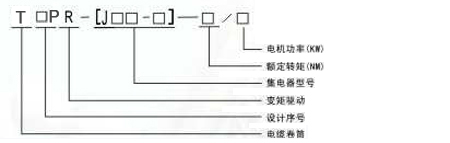

卷筒型号说明

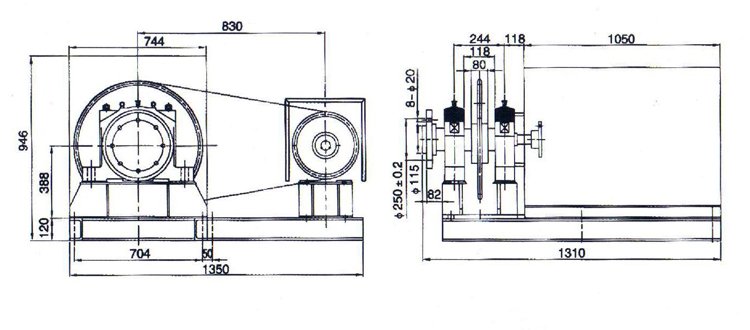

产品结构图

  • DKT21P系列变频电缆卷筒

  • DKT1P系列变频电缆卷筒
